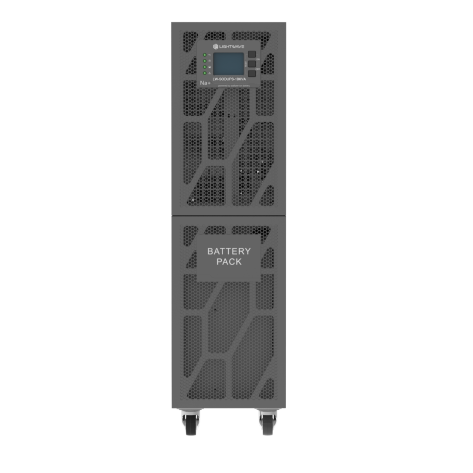

LightWave LW-SODUPS-10KVA Online UPS

The LightWave LW-SODUPS-10KVA Online UPS is a high-capacity, true double-conversion power backup system engineered for enterprise-grade performance. Designed to support large-scale operations, critical data infrastructure, and sensitive equipment, this 10KVA UPS offers premium protection against power outages, fluctuations, and electrical disturbances.

Zero Transfer Time with True Sinewave Output:
Built for environments where uptime is critical, the LW-SODUPS-10KVA delivers pure sinewave output across a selectable nominal voltage range of 208/220/230/240VAC. With 0ms transfer time from line to battery mode, it ensures seamless continuity during power interruptions. A crest factor ratio of 3:1 and <3% THD further guarantee stable and distortion-free power, ideal for high-precision systems.

Wide Input Tolerance and Consistent Output Voltage:
The UPS supports a wide input voltage range of 110–300VAC (at 50% load) and 176–276VAC (at 100% load), operating at frequencies from 40 to 70Hz. With a voltage regulation of ±1%, it stabilizes inconsistent power supply, protecting sensitive devices from overvoltage or undervoltage conditions.

Advanced Battery System with Fast Charging:
Powered by five high-efficiency 48V 4.8Ah sodium-ion batteries, the LW-SODUPS-10KVA provides backup runtime of 3.5 minutes at full load and 9.5 minutes at 50% load. The system recharges in less than one hour from a full discharge at 25°C, ensuring it’s always ready for the next outage. This battery configuration balances extended backup with quick recovery, critical for uninterrupted operations.

Exceptional Energy Efficiency:
With >96% efficiency in line mode and ≥98% in ECO mode when fully charged, this UPS maximizes energy savings while minimizing heat output and utility costs. Its energy-conscious design supports both performance and sustainability goals.

Real-Time Monitoring and Versatile Communication:
The LW-SODUPS-10KVA features RS232 and USB ports for seamless integration with monitoring software and system management tools. It enables real-time tracking of power parameters, load status, and battery health, empowering users to make proactive decisions.

Rugged Design for Harsh Conditions:
Operating in a wide temperature range of -20°C to 40°C and tolerating humidity up to 95% RH (non-condensing), the UPS is ideal for demanding environments. It supports installation at altitudes up to 4000m with derating. The heavy-duty chassis measures 190×450×700mm and weighs 33.9kg, ensuring robust and stable operation in enterprise setups.

In conclusion, the LightWave LW-SODUPS-10KVA Online UPS is a powerhouse built for resilience, performance, and efficiency—an ideal solution for businesses that demand uninterrupted, high-quality power.
