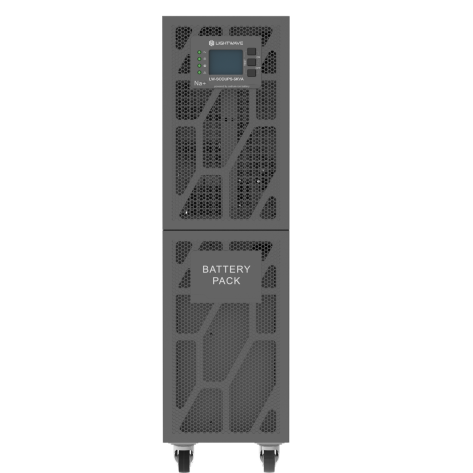

LightWave LW-SODUPS-6KVA Online UPS

The LightWave LW-SODUPS-6KVA Online UPS is a high-capacity, double-conversion power protection system built to support large-scale operations and mission-critical environments. With a 6KVA rating and pure sinewave output, this UPS offers uninterrupted, stable, and clean power delivery, making it ideal for data centers, industrial control systems, medical equipment, and enterprise-grade IT setups.

True Online Double-Conversion with 0ms Transfer Time:
The UPS delivers precise and clean power with nominal voltage options of 208/220/230/240VAC, supported by a true online topology that ensures 0ms transfer time from line to battery. This protects sensitive systems from even the slightest power disruptions. The pure sinewave output, crest factor of 3:1, and THD under 3% provide consistent, high-quality power to critical devices.

Wide Input Voltage Range and Stable Output:
Designed for environments with unstable grids, the LW-SODUPS-6KVA accepts input voltage from 110 to 300VAC at 50% load and 176 to 276VAC at full load. With +/-1% voltage regulation, it maintains stable output regardless of input variations, ensuring that connected equipment operates safely and reliably.

Advanced Sodium-ion Battery System:
The UPS is powered by five 48V 3.6Ah sodium-ion batteries, offering robust and reliable backup. It provides 4 minutes of runtime at full load and up to 11 minutes at 50% load, giving users ample time to manage power transitions. The batteries recharge fully in under one hour at 25°C, ensuring rapid readiness for the next backup cycle.

Superior Efficiency and Eco-Conscious Operation:
Optimized for energy savings, the UPS boasts ≥95% efficiency in line mode and ≥98.5% in ECO mode when fully charged. These ratings reduce electricity costs while supporting sustainable power management across operations.

Seamless Monitoring and Connectivity:
Featuring RS232 and USB communication options, the LW-SODUPS-6KVA allows easy connection to management systems and UPS software. Real-time monitoring of battery status, voltage input/output, and load ensures efficient and proactive power management.

Built for Demanding Conditions:
With a temperature range of -20°C to 40°C, up to 95% relative humidity tolerance, and altitude support up to 4000m, this UPS is engineered for both controlled and rugged environments. Its durable chassis measures 190×450×700mm and weighs 29.7kg, offering a strong and stable presence in server rooms or industrial sites.

In summary, the LightWave LW-SODUPS-6KVA Online UPS is a powerhouse of reliability, built to deliver high-efficiency, uninterrupted protection for demanding operations where downtime is not an option.
